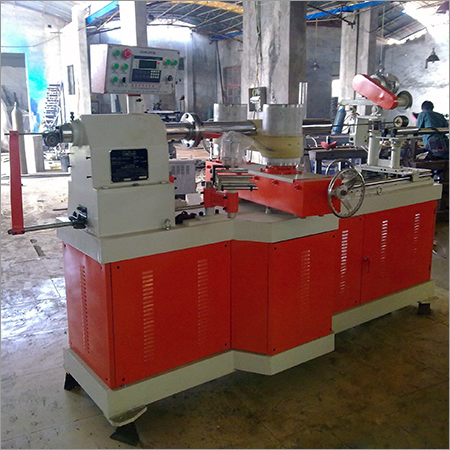

Spiral Paper Tube Making Machine

Spiral Paper Tube Making Machine
Spiral Paper Tube Making Machine
Product Code : SPTM 14
Brand Name : New Times Machinery
Product Description

With an experience of over 2 decades, we are catering the varied demand of various industries by manufacturing and exporting a huge array of Spiral Paper Tube Making Machine. These machines are specifically designed & developed in order to meet the specific requirements of producing spiral paper tubes of various lengths. Offered at economical prices, our Spiral Paper Tube Making Machine is well acknowledged in the market for its excellent performance.

Features:
  • Automatically gluing function
  • Easy to use
  • Sophisticated mechanism
  • Inner diameter: 20-100mm
  • Thickness: 1-5mm
  • Main motor:4.0kw



Technical Parameter

                   Control System

Paper Layer

2-12 Layers

PLC

Xinjie

Inner Diameter

20-100mm

Man-machine Interface

Touch Screen (Xinjie)

Wall Thickness

1-5mm

Inverter

5.5KW  Huangxin

Winding Speed

0-20 meters/min

Execute Components

CHNT

Winding Nose

Two noses single belt

Signal Components

Hugong

Shaft Fixing Way

Flange

Pneumatic Components

Jingwei

Cutting System

Single Circular Blade

Electric Components

Delixi

Gluing Way

Double

Configuration

Length fixing

Encoder

Paper Reel Stand

12 Layers

Common Type

Operator

1-2 persons

Gluing System

12 Layers

Spraying Type

Speed Control

By Inverter

Inner Paper Shelf

1 Set

Power Supply

380V/3Phase/50Hz

(can be customized)

Surface Paper Shelf

1 Set

Discharging Shelf

1 Set

Size

Belt

2 Pieces

Mainframe

2700*1600*1800mm

Mandrel Shaft

2 Piece

Working Space

7500*5000mm

Belt Adjusting

Manual

Weight

1500kgs

Paper Reel Stand & Gluing Shelf Adjusting

Manual

Driving System

Main Motor

4.0KW  Wannan

Automatically Gluing

Gluing Pump 1.5kw

Motor Rotating Speed

1400r/min

Lubricating Oil for Paper Tape

Automatically Supply

Nose Rotating Speed

48r/min

Nose Output Strength

3000N.m

Enclosed Spare Parts

Reduction Box

WPO135

Useful Tool

1 Set

Gear Box

WPO135





Driving Chain

16A*2
