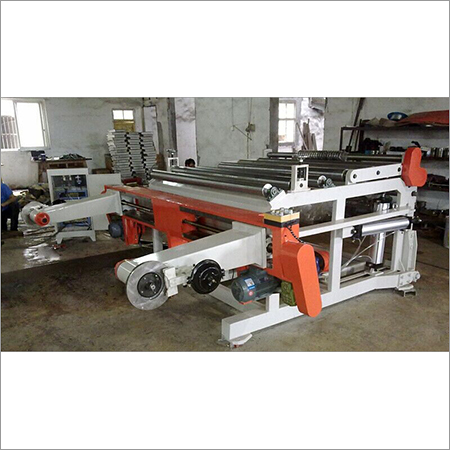

Paper Slitting Machine

Paper Slitting Machine
Paper Slitting Machine
Product Code : PSM 18
Brand Name : New Times Machinery
Product Description

We are a professionally managed fast growing company with impressive track record in manufacturing and exporting a complete range of Paper Slitting Machine. Extensively used for slitting paper into different sections for further use, we are offering these machines to our clients in different specifications. These machines are designed and developed by using quality tested materials at our advanced manufacturing unit. Apart from this, we are offering Paper Slitting Machine at feasible prices.

Features:
  • Optimum performance
  • Easy installation
  • Robust construction
  • Jumbo roll width:600-1600mm
  • Jumbo roll diameter:1200mm(max.)
  • Finished diameter:1200mm(max.)
  • Slitting width:40mm(min.)
  • Power:7.5kw
  • Material paper:60-600g

Technical Parameter

                  Control System

Material Paper

60-600gsm

Main Motor

7.5kw Wannan

Unwind Width

600-1600mm

Lifting Motor

 1.1kw*2 pcs Wannan

Unwind Diameter

1200mm (standard)

Clamping Motor

 1.5kw *2 pcs Wannan

Rewind Diamter

1200mm (standard)

 Execute Components

 CHNT

Minimum Slitting Width

40mm

 Signal Components

 Hugong

Working Speed

0-200 meters/min

 Pneumatic Components

 Jingwei

Speed regulation

By motor

 Electric Components

 Delixi

Material Loading Device

Shaftless Device

Bearing

 Haerbin

Loading Type

Automatically by Pneumatic



Rewinding Type

Air Inflation Shaft

Configuration

Unloading Type

Automatically by Pneumatic

Material Paper Fixing Cone

2 Pieces (76mm ID)

Power Supply

380V/3Phase/50Hz

(can be customized)

Lifting Air Cylinder

2 Pieces

Discharging Air Cylinder

2 Pieces

Size

Material Shafts Braking Device

2 Sets

Mainframe (two parts)

2080*3300*1250mm

Blades

18 Sets (standard)

Operating Box

1 Set

Weight

3100kgs

Meter Counter

Can be customized

Enclosed Spare Parts

Automatic Correcting Unit

Can be customized

Useful Tool

1 Set
