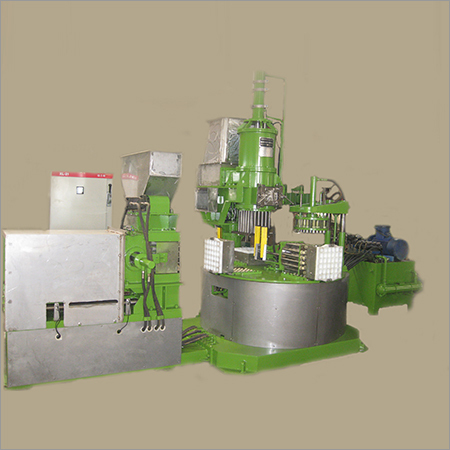

Cartridge Filling Machine

Cartridge Filling Machine
Cartridge Filling Machine
Product Code : CFM 20
Brand Name : New Times Machinery
Product Description

Being among the topnotch organizations, we are involved in manufacturing and exporting a sturdily constructed array of Cartridge Filling Machine in the worldwide market. Our range of filling machines is designed and developed in accordance with the global quality standards. Available different technical specifications as per the client requirement, this versatile Cartridge Filling Machine is ideally used for filling cartridges of various paper tube machines.

  • High filling efficiency
  • Easy to use
  • Low power consumption
Technology parameters:
  • Cartridge specification:  Inner diameter 32mm, 35mm
  • Number of filling cartridge per time: 25 pieces
  • Cartridge temperature: 25 degree~48 degree
  • Production capacity: 150g: 1800kg/h  200g: 2200kg/h
  • Control mode: PLC control, touch screen operation
  • Working pressure: 5mpa
  • Drive power: 11KW

Our Services

  • Raw material inspection: All material test high quality, then keep in warehouse
  • Quality Control: We have strict quality control system Incoming Quality Control, Final quality control, Out-going quality control

Packaging & Delivery

  • Packaging Detail : Wooden case
  • Delivery Detail    : 10 days after receiving the deposit
